    产品简介

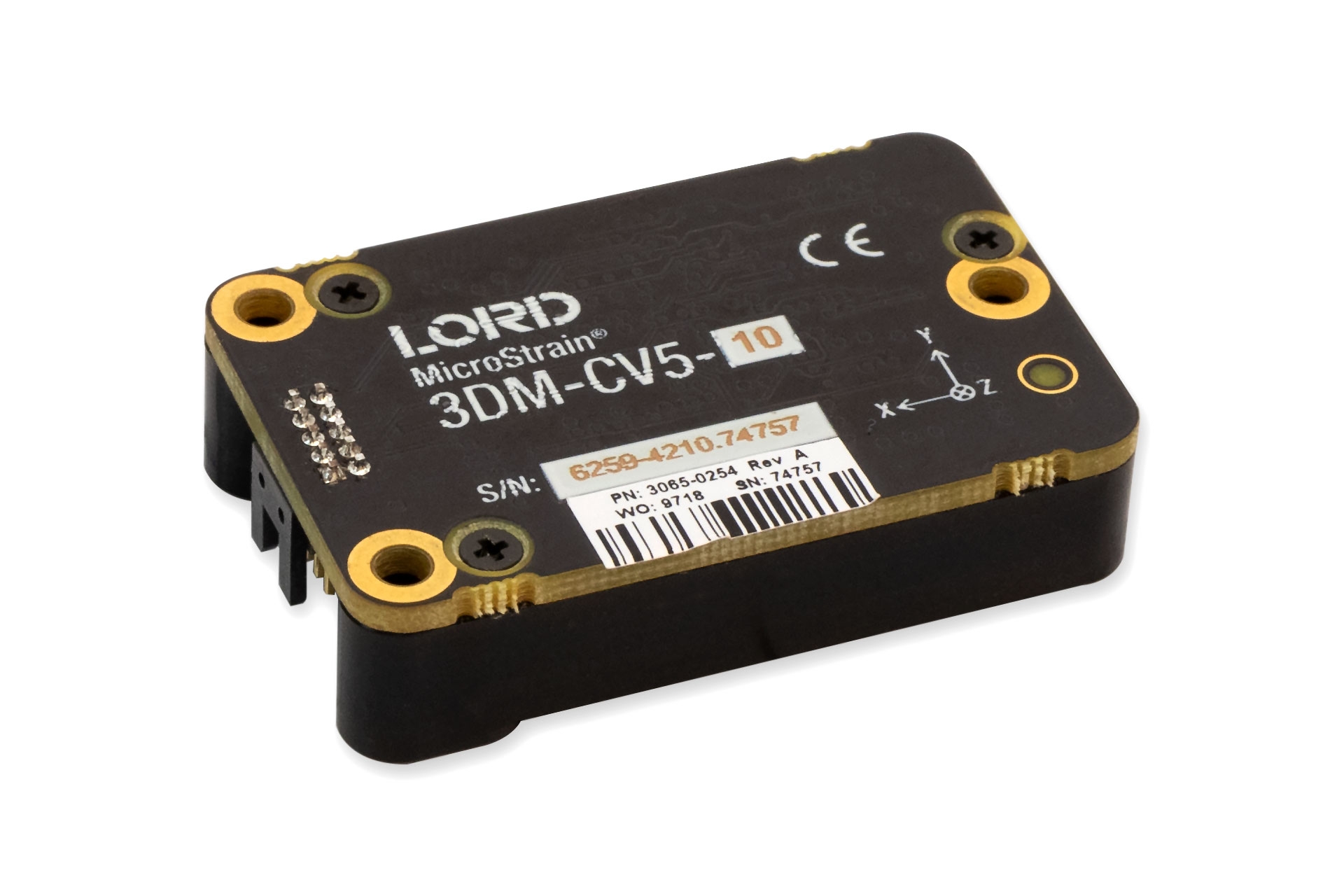

    3DM-CV5-IMU 惯性测量单元(IMU)(原3DM®-CV5-10升级型号)
    嵌入式惯性测量单元,OEM封装
    3DM®CV5-IMU是小型轻量的工业级IMU。它具有完全校准和温度补偿的三轴加速度计和陀螺仪,可在动态条件下实现高质量测量。
    这种注重价值的IMU旨在平衡成本和性能,适合广泛的应用,包括平台稳定、平衡机器人、天线指向和监控使用。

    Lord Sensing 3DM-CV5系列工业级、OEM板载型惯性传感器提供广泛的三轴惯性测量、计算姿态和导航解决方案。



    在所有型号中,惯性测量单元(IMU)包括加速度、角速率、角度变量和速度变量的直接测量。补偿选项包括自动补偿磁异常、陀螺仪和加速计噪声以及噪声影响。在包括计算输出的型号中,通过自适应估计滤波算法来处理传感器测量,以在动态条件下产生高精度计算输出。计算的输出因型号而异,可以包括翻滚、俯仰和偏航。所有传感器都经过完全温度补偿,并在工作温度范围内进行校准。微机电系统(MEMS)技术的应用使得设备精度高、小型、重量轻。



    SensorConnect软件是一个用户友好的设备配置程序。也可以使用MIP监控软件(Microstrain互联网协议)。这两个软件包都提供设备配置、实时数据监控和记录。另外,MIP数据通信协议可用于定制接口的开发和方便的OEM整合。



    传感器可独立于计算机平台、操作系统或编码语言运行。


    产品亮点

    l  三轴加速度计、陀螺仪和温度传感器可实现高质量测量

    l  体积小、重量轻、性能高的IMU



    特点和优势

    高性能

    l  经过完全校准、温度补偿,并在数学上与正交坐标系对齐,以实现高精度输出

    l  高性能、低成本解决方案

    l  直接PCB安装或带带状电缆的机箱安装

    l  精密安装对准



    使用方便

    l  SensorConnect可实现简单的设备配置、实时数据监控和记录

    l  提供硬件开发套件

    l  MSCL API允许与C++、Python、.NET、C#、Visual Basic、LabVIEW和MATLAB环境轻松集成

    l  开放的字节级通信协议



    成本效益

    l  开箱即用解决方案缩短开发时间

    l  批量折扣



    应用领域

    l  无人驾驶车辆

    l  机器人运动

    l  平台稳定,陀螺地平仪

    l  车辆的健康和使用情况监测

    The LORD Sensing 3DM-CV5 family of industrial-grade, board-level inertial sensors provides a wide range of triaxial inertial measurements, computed attitude, and navigation solutions.


    In all models, the Inertial Measurement Unit (IMU) includes direct measurement of acceleration, angular rate, delta theta, and delta velocity. Compensation options include automatic compensation for magnetic anomalies, gyro and accelerometer noise, and noise effects. In models that include computed outputs, sensor measurements are processed through and auto-adaptive estimation filter algorithm to produce high accuracy computed outputs under dynamic conditions. The computed outputs vary between models and can include roll, pitch, and yaw. All sensors are fully temperature-compensated and calibrated over the operating temperature range. The use of Micro-Electro-Mechanical Systems (MEMS) technology allows for highly accurate, small, light-weight devices.


    SensorConnect software is a user-friendly program for device configuration. MIP Monitor (MicroStrain Internet Protocol) can also be used. Both packages provide for device configuration, live data monitoring, and recording. Alternatively, the MIP Data Communications Protocol is available for development of custom interfaces and easy OEM integration.


    The sensor operates independent of computer platform, operating system, or coding language.


    PRODUCT HIGHLIGHTS

    l  Triaxial accelerometer, gyroscope, and temperature sensors achieve the optimal combination of measurement qualities

    l  Smallest, lightest, highest performance IMU in its class



    FEATURES AND BENEFITS

    BEST IN CLASS PERFORMANCE



    l  Fully calibrated, temperature-compensated, and mathematically-aligned to an orthogonal coordinate system for highly accurate outputs

    l  High-performance, low-cost solution

    l  Direct PCB mount or chassis mount with ribbon cable

    l  Precision mounting alignment features



    EASE OF USE



    l  SensorConnect enables simple device configuration, live data monitoring, and recording

    l  Hardware development kit available

    l  The MSCL API allows easy integration with C++, Python, .NET, C#, Visual Basic, LabVIEW and MATLAB environments

    l  MIP open byte level communication protocol



    COST EFFECTIVE



    l  Out-of-the box solution reduces development time

    l  Volume discounts



    APPLICATIONS



    l  Unmanned Vehicles

    l  Robotics

    l  Platform stabilization, artificial horizon

    l  Health and usage monitoring of vehicles
